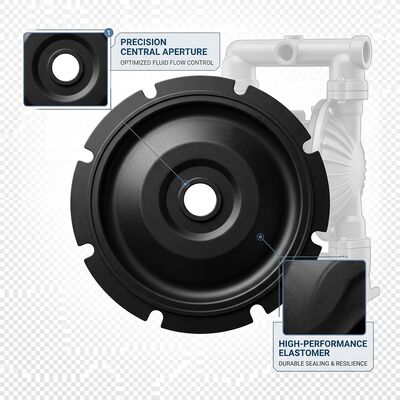

FKM Rubber Gasket Durable Sealing Solution for Industrial Applications Resistant to Chemicals and Extreme Temperatures

Product Description:

The Rubber Diaphragm Seals are specifically engineered to meet the rigorous demands of industrial, chemical, and food processing environments. These seals are an essential component in ensuring the integrity and efficiency of various pumping and fluid handling systems, particularly those utilizing Air-Operated Double Diaphragm (AODD) pumps. Designed for versatility and durability, the Rubber Diaphragm Seals are available in multiple sizes including 10, 25, 40, 50, 80, and 100, allowing them to fit a wide range of applications and equipment specifications.

One of the key features of these seals is their flexibility. The Rubber Diaphragm Seals are designed to accommodate movement and vibration inherent in many industrial processes. This flexibility helps to maintain a tight seal even under dynamic conditions, preventing leaks and minimizing downtime. The ability to absorb and adapt to mechanical stresses makes these seals highly reliable and long-lasting, reducing the need for frequent maintenance and replacements.

At the heart of the Rubber Diaphragm Seals is the diaphragm barrier, which acts as a critical protective layer. This diaphragm barrier separates the fluid being pumped from the mechanical parts of the equipment, protecting sensitive components from corrosion, contamination, and wear. The diaphragm barrier is made from high-quality rubber materials that offer excellent chemical resistance and durability, ensuring the seal performs consistently even when exposed to aggressive chemicals or food-grade substances.

Additionally, the product includes replacement diaphragms, making maintenance straightforward and cost-effective. The availability of replacement diaphragms means that the seals can be serviced without the need for complete system overhauls, thus extending the lifespan of the equipment and reducing operating costs. The replacement diaphragms are manufactured to precise specifications to guarantee a perfect fit and optimal performance every time.

The Rubber Gasket used in these diaphragm seals plays a crucial role in enhancing the sealing capability. The rubber gasket ensures a secure and airtight fit between the diaphragm and the pump housing, preventing any fluid leakage. This gasket is engineered to withstand high pressures and temperature variations commonly encountered in industrial and chemical processing environments. Its resilience and sealing efficiency contribute significantly to the overall reliability of the diaphragm seal assembly.

These Rubber Diaphragm Seals belong to the AODD series, a widely recognized standard in fluid transfer technology. The AODD series is known for its robust design and adaptability, making it suitable for handling a variety of fluids including abrasive, viscous, and chemically aggressive liquids. The seals complement the AODD pumps perfectly by ensuring that the diaphragm and pump components remain protected and function smoothly under demanding conditions.

In summary, the Rubber Diaphragm Seals offer a combination of durability, flexibility, and chemical resistance that makes them ideal for industrial, chemical, and food processing applications. Their availability in multiple sizes, along with the inclusion of replacement diaphragms, ensures they can meet diverse operational requirements with ease. The integration of a high-quality rubber gasket and a reliable diaphragm barrier further enhances their sealing performance, providing users with a dependable solution for maintaining pump efficiency and process integrity.

Features:

• Product Name: Rubber Diaphragm Seals
• Material: Rubber and FKM, among others
• Replacement Diaphragm available for easy maintenance
• Sizes available: 10, 25, 40, 50, 80, 100
• Elastomeric Seals ensure excellent flexibility and durability
• Diaphragm Barrier design for reliable sealing performance
• Low maintenance requirements for cost-effective operation

Technical Parameters:

Applications:

The HONGUM Rubber Diaphragm Seals are engineered for a wide range of application occasions and scenarios, making them an essential component in various industrial and commercial settings. With a tolerance of ±0.02mm, these seals ensure precise fitting and reliable performance, which is crucial in maintaining the integrity of diaphragm barriers.

One of the primary application occasions for HONGUM Rubber Diaphragm Seals is in pressure measurement and control systems. The diaphragm barrier plays a vital role in isolating sensitive instruments from harsh process media, preventing contamination and damage. These seals are designed to accommodate replacement diaphragms, allowing for easy maintenance and extended equipment life. Their ability to withstand temperatures ranging from -40°C to +170°C, depending on the material—such as FKM and other high-performance elastomers—makes them suitable for use in extreme environmental conditions.

In chemical processing plants, where aggressive chemicals and high temperatures are common, the HONGUM Rubber Diaphragm Seals provide a reliable diaphragm barrier that protects instrumentation and ensures accurate readings. The use of materials like FKM enhances chemical resistance and durability, making these seals ideal for applications involving corrosive fluids and gases.

Another typical scenario for the use of HONGUM Rubber Diaphragm Seals is in food and pharmaceutical industries. Here, hygiene and contamination prevention are paramount. The diaphragm barrier created by these seals prevents cross-contamination between the process media and the measuring instruments, ensuring compliance with strict industry standards. The ability to replace the diaphragm easily reduces downtime and maintenance costs.

Additionally, HONGUM Rubber Diaphragm Seals are well-suited for use in hydraulic and pneumatic systems, where maintaining pressure and preventing leaks is critical. The tight tolerance of ±0.02mm ensures a perfect seal, contributing to system efficiency and safety. Their broad temperature range and material versatility allow them to function reliably in diverse operational environments.

Overall, the HONGUM Rubber Diaphragm Seals are versatile and reliable components that serve as an effective diaphragm barrier in numerous scenarios, from industrial process control to sensitive analytical instrumentation. Their precision, material quality, and temperature resilience make them indispensable in maintaining system integrity and performance across multiple application occasions.

Customization:

HONGUM offers customized Rubber Diaphragm Seals designed to meet your specific requirements. Manufactured from high-quality rubber materials, our elastomeric seals provide excellent durability and flexibility across a temperature range of -40°C to +170°C, depending on the material used. Available in sizes 10, 25, 40, 50, 80, and 100, each seal is produced with a tight tolerance of ±0.02mm to ensure precise fitting and reliable performance. Part of the AODD series, these rubber gaskets and elastomeric seals are ideal for various industrial applications requiring robust sealing solutions.

Support and Services:

Our Rubber Diaphragm Seals are designed to provide reliable and durable sealing solutions for a wide range of industrial applications. To ensure optimal performance and longevity of your diaphragm seals, please follow the installation and maintenance guidelines provided in the product manual.

For technical support, our expert team is available to assist you with product selection, troubleshooting, and application advice. We offer comprehensive services including installation assistance, calibration support, and routine maintenance to help maximize the efficiency of your sealing systems.

Regular inspection and proper cleaning of the rubber diaphragm seals are crucial to prevent wear and contamination. Avoid exposure to harsh chemicals or extreme temperatures beyond the specified limits to maintain the integrity of the seals.

In case of any performance issues or if you require replacement parts, please refer to the product documentation for detailed instructions. Our support team is committed to providing prompt and effective solutions to minimize downtime and ensure continuous operation.

For additional resources, including technical datasheets, installation guides, and troubleshooting tips, please visit our website or consult the product support section. We strive to deliver exceptional service and support for all your Rubber Diaphragm Seal needs.

Packing and Shipping:

Our Rubber Diaphragm Seals are carefully packaged to ensure maximum protection during transit. Each seal is individually wrapped in a protective film to prevent damage and contamination. The seals are then placed in sturdy, cushioned boxes designed to withstand handling and shipping stresses.

For bulk orders, the products are securely packed in reinforced cartons with appropriate padding materials to avoid movement and impact. All packages are clearly labeled with product information and handling instructions to facilitate safe delivery.

We partner with reliable shipping carriers to provide timely and secure delivery worldwide. Tracking information is provided for all shipments, ensuring transparency and peace of mind for our customers.

Whether shipping domestically or internationally, we prioritize the integrity of the Rubber Diaphragm Seals to arrive in optimal condition, ready for immediate use.

FAQ:

Q1: What is a Rubber Diaphragm Seal from HONGUM used for?

A1: The HONGUM Rubber Diaphragm Seal is designed to protect pressure measurement instruments from corrosive, viscous, or high-temperature media by isolating the instrument from the process fluid.

Q2: What materials are used in HONGUM Rubber Diaphragm Seals?

A2: HONGUM Rubber Diaphragm Seals typically use high-quality rubber materials such as EPDM, NBR, or Viton, chosen based on compatibility with the process media.

Q3: Are HONGUM Rubber Diaphragm Seals compatible with food-grade applications?

A3: Yes, HONGUM offers rubber diaphragm seals made from FDA-compliant materials suitable for food and pharmaceutical industry applications.

Q4: How do I select the right HONGUM Rubber Diaphragm Seal for my application?

A4: Selection depends on factors such as the type of process media, temperature, pressure range, and connection type. HONGUM provides technical support to help you choose the appropriate seal based on your requirements.

Q5: Can HONGUM Rubber Diaphragm Seals be used with corrosive chemicals?

A5: Yes, depending on the rubber material chosen, HONGUM Rubber Diaphragm Seals can resist various corrosive chemicals. It is important to select the correct rubber type compatible with your specific chemicals.
